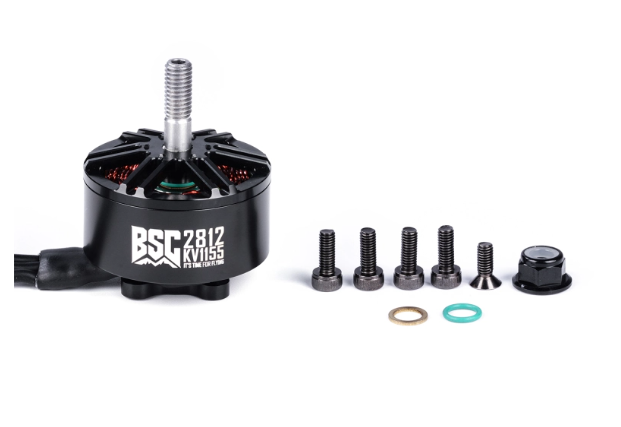

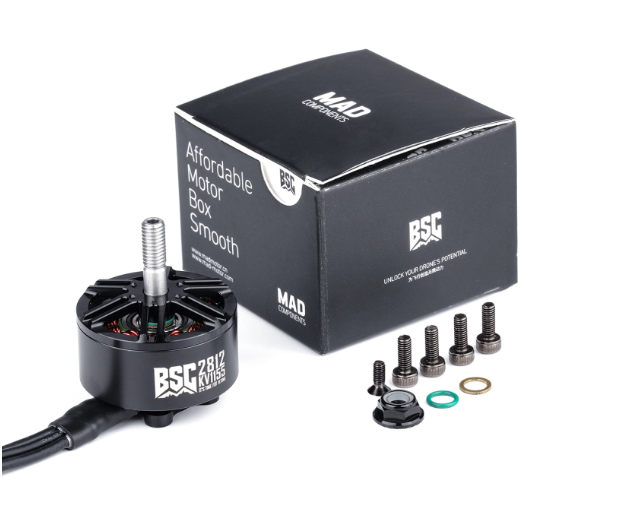

MAD Components BSC 2812 FPV Drone Motor

Elevate Your Flight: Extreme Torque for Heavy-Lift Cinelifters and Ultra Long-Range

Introducing the MAD BSC 2812 V1.0, an industrial-grade brushless motor engineered specifically for the extreme demands of 10-inch, 11-inch, and 12-inch ultra long-range FPV drones, as well as heavy-payload X8 cinematic Cinelifters. As part of MAD's BSC (Basic) Series, this motor delivers the ultimate balance of reliable, professional-grade performance and budget-friendly accessibility.

When flying oversized propeller setups or carrying heavy professional cinematic payloads (such as RED Komodos, BMPCC 6Ks, or stabilized gimbal rigs), the massive 2812 stator size provides the immense torque, stability, and thermal efficiency needed to battle high winds, control intense propwash, and maintain rock-solid flight dynamics.

Key Features

Massive 2812 Stator Power Step up to serious heavy-lift FPV performance. The taller 12mm stator height provides immense torque and magnetic authority, allowing for rapid throttle correction on large, heavy-pitched propellers and dual-motor coaxial (X8) configurations.
Factory Dynamic Balance (Under 5mg) Keep your high-definition cinematic footage pristine. Every single BSC 2812 motor undergoes meticulous dynamic rotor balancing at the factory to eliminate high-frequency vibrations and ensure crystal-clear video feed without requiring aggressive software filtering.
Heavy-Duty Thermal Management Engineered for extreme endurance. The robust open-base CNC design accelerates airflow and heat dissipation, keeping your internal motor temperatures cool even during high-current cinematic pursuits or extended ultra long-range cruising.
Extra-Long, Heavy-Duty Lead Wires Ready for large-frame builds. Comes pre-equipped with 250mm of ultra-flexible, high-durability 18 AWG black silicone wire, eliminating the need to solder wire extensions on wide-arm drone designs.

Technical Specifications

Motor Model: MAD BSC 2812 V1.0
Stator Dimensions: 28mm x 12mm
Motor Dimensions: Diameter 33.6mm x Height 41.7mm
KV Options: 925KV (6S) / 1155KV (4S to 6S)
Configuration: 12N14P (12 Slots, 14 Poles)
Rotor Balance: Less than or equal to 5mg
Motor Balance: Less than or equal to 10mg
Shaft Diameter: Internal: 5mm / Propeller Mount: M5 Thread
Motor Weight: Approximately 72 grams (without wires)
Cable Specifications: 250mm length, 18 AWG black silicone wire
Mounting Pattern: 19mm x 19mm (M3 screw holes)
Maximum Thrust: Up to 3.9kgf (kilograms of force) depending on propeller and voltage selection

Performance Matrix

The BSC 2812 is highly versatile, optimizing performance depending on your payload and voltage choices:

925KV Variant (6S)
- Best for: High-efficiency 6S ultra long-range cruising and heavy payload management on larger prop configurations.
- Characteristics: Offers the longest flight times, smoothest low-end throttle response, and maximum battery efficiency when spinning 11-inch to 12-inch propellers on 6S voltage.
1155KV Variant (4S to 6S)
- Best for: High-performance 4S to 6S heavy-lift Cinelifters (including X8 coaxial setups) and fast cinematic tracking.
- Characteristics: Delivers mind-bending top-end speed, faster recovery from dive maneuvers, and punchy responsiveness across the entire throttle range, making it a favorite for tracking fast targets with heavy cameras on 10-inch and 11-inch props using standard 4S to 6S battery packs.

Compatibility & Application Recommendations

Drone Class: 10-inch to 12-inch FPV Quadcopters (Ultra Long-Range and Mountain Surfing) and 10-inch to 11-inch X8 Coaxial Cinelifters.
Propeller Selection: 10" to 12" dual-blade or tri-blade propellers (e.g., HQProp 10x5x3, Gemfan 1150).
Battery Recommendation: 4S to 6S LiPo/LiHv high-capacity batteries (or large, custom Li-Ion packs designed for maximum cruise endurance).
ESC Rating: 60A to 80A Brushless ESC (supporting BLHeli_32 or AM32).
