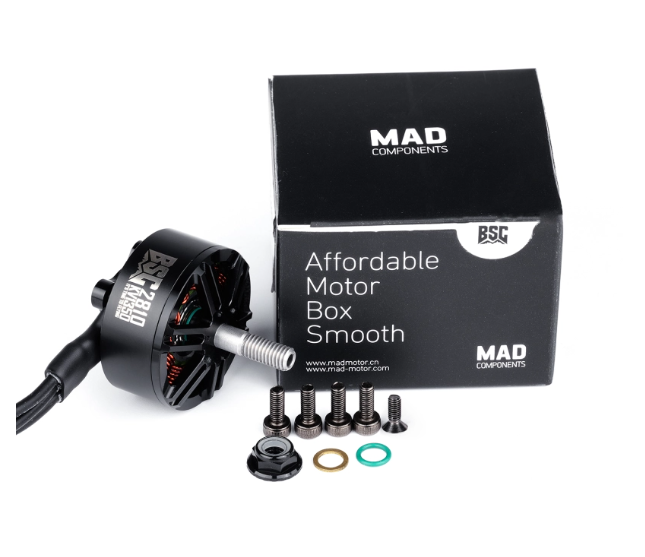

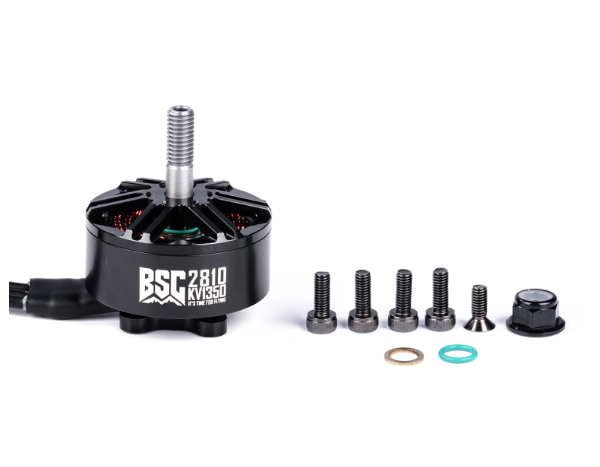

MAD Components BSC 2810 FPV Drone Motor

Elevate Your Flight: Extreme Torque for Heavy-Lift Cinelifters and Ultra Long-Range

Introducing the MAD BSC 2810 V1.0, a powerhouse brushless motor engineered specifically for the extreme demands of 9-inch, 10-inch, and 11-inch ultra long-range FPV drones, as well as 9-inch and 10-inch X8 cinematic heavy-lift Cinelifters. As part of MAD's BSC (Basic) Series, this motor delivers the ultimate balance of reliable, professional-grade performance and budget-friendly accessibility.

When flying large-platform propeller setups or carrying heavy professional cinematic cameras (like RED Komodos or BMPCCs), the massive 2810 stator size provides the immense torque, stability, and efficiency needed to battle high winds, control propwash, and maintain rock-solid flight dynamics with heavy payloads.

Key Features

Massive 2810 Stator Power Step up to serious industrial-grade FPV performance. The tall 2810 stator provides immense torque and magnetic authority, allowing for rapid throttle correction on oversized propeller configurations and dual-motor coaxial (X8) configurations.
Factory Dynamic Balance (Under 5mg) Keep your high-definition cinematic footage pristine. Every single BSC 2810 motor undergoes meticulous dynamic rotor balancing at the factory to eliminate high-frequency vibrations and ensure crystal-clear video feed without requiring aggressive software filtering.
Heavy-Duty Thermal Management Engineered for extreme endurance. The robust open-base CNC design accelerates airflow and heat dissipation, keeping your internal motor temperature cool even during high-current cinematic pursuits or extended ultra long-range cruising.
Extra-Long, Heavy-Duty Lead Wires Ready for large-frame builds. Comes pre-equipped with 250mm of ultra-flexible, high-durability 18 AWG black silicone wire, eliminating the need to solder wire extensions on wide-arm drone designs.

Technical Specifications

Motor Model: MAD BSC 2810 V1.0
Stator Dimensions: 28mm x 10mm
Motor Dimensions: Diameter 33.6mm x Height 39.7mm
KV Options: 1100KV / 1350KV
Configuration: 12N14P (12 Slots, 14 Poles)
Rotor Balance: Less than or equal to 5mg
Motor Balance: Less than or equal to 10mg
Shaft Diameter: Internal: 5mm / Propeller Mount: M5 Thread
Motor Weight: Approximately 63 grams (without wires)
Cable Specifications: 250mm length, 18 AWG black silicone wire
Mounting Pattern: 19mm x 19mm (M3 screw holes)
Maximum Thrust: Up to 3.2kgf (kilograms of force) depending on prop and voltage selection

Performance Matrix

The BSC 2810 is highly versatile, optimizing performance depending on your payload and voltage choices:

1100KV Variant
- Best for: High-efficiency 6S ultra long-range cruising and heavy payload management.
- Characteristics: Offers the longest flight times, smoothest throttle response, and maximum battery efficiency when spinning 10-inch to 11-inch propellers.
1350KV Variant
- Best for: High-performance 5S to 6S heavy-lift Cinelifters (including X8 coaxial rigs) and faster cinematic tracking.
- Characteristics: Delivers mind-bending top-end speed, faster recovery from dive maneuvers, and punchy responsiveness across the entire throttle range, making it a favorite for tracking fast targets with heavy cameras.

Compatibility & Application Recommendations

Drone Class: 9-inch to 11-inch FPV Quadcopters (Ultra Long-Range and Mountain Surfing) and 9-inch to 10-inch X8 Coaxial Cinelifters.
Propeller Selection: 9" to 11" dual-blade or tri-blade propellers (e.g., HQProp 10x4.5, Gemfan 9045).
Battery Recommendation: 5S to 6S LiPo/LiHv high-capacity batteries (or large Li-Ion packs designed for maximum cruise endurance).
ESC Rating: 55A to 80A Brushless ESC (supporting BLHeli_32 or AM32).
